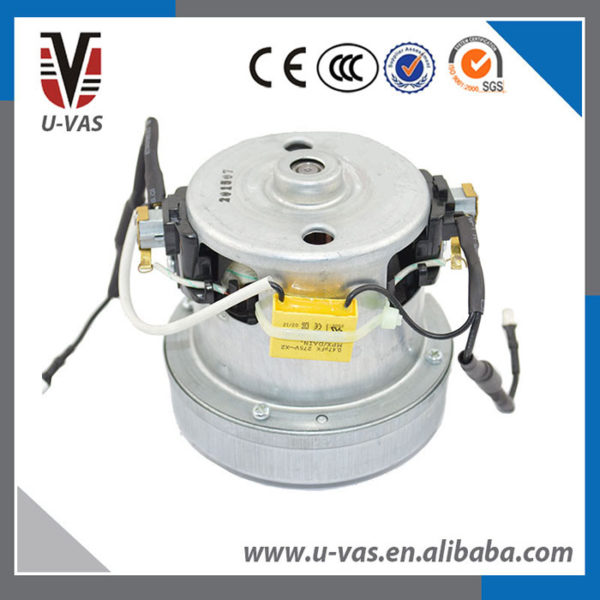

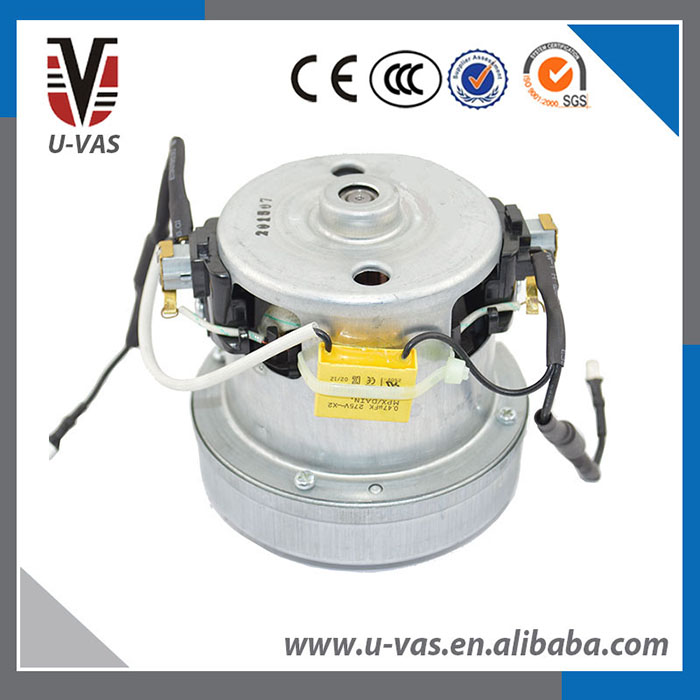

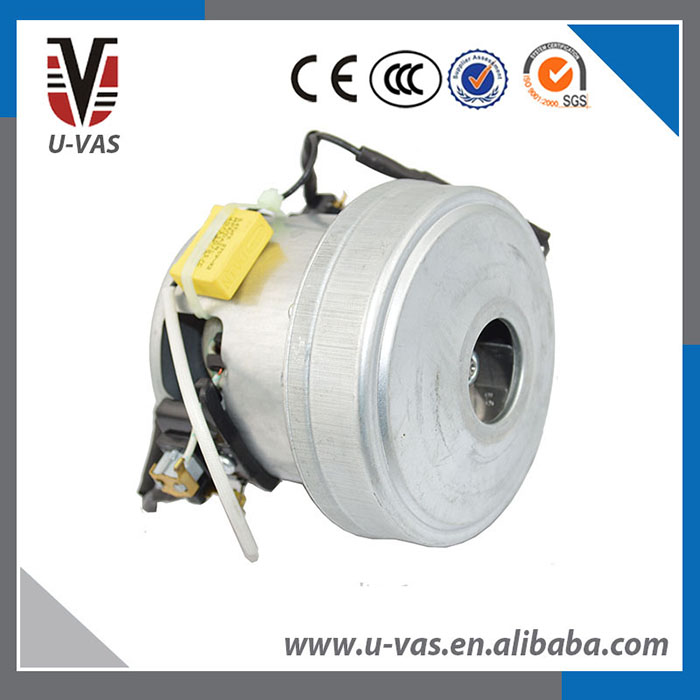

High Quality Hand Dryer Motor PT20

Item : PT20

Voltage: 100-127/220-240V

Power: 500W

Description

Specifications:



Item  PT20
Certificate CE, CCC, RoHS, SGS
Rated Voltage(V) 100-127/220-240
Rated Frequency(Hz) 50/60
Rated Output Power(W)  500
Rotation CW
Max Vacuum Degree(Kpa)  13
Max Air Flow(M3/min)  2
Max Suction Power (W)  150
Max Suction Efficiency(%)  30
Motor Speed(Rpm)  25000
Spark Grade  2
Vibration(mm/s)  20
Noise(dB)  98
Insulation Level  E
Life  800h
Size(mm) Top 84, bottom 106, height 105

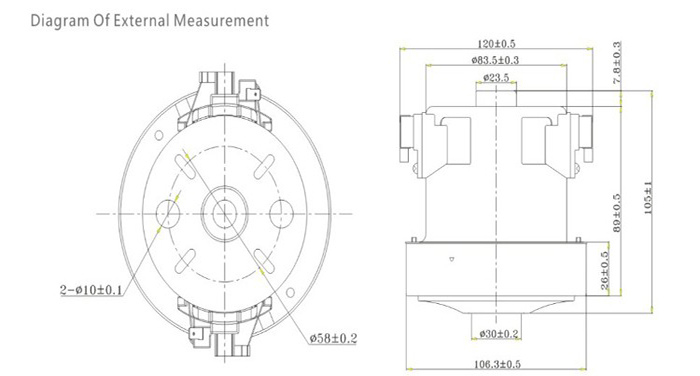

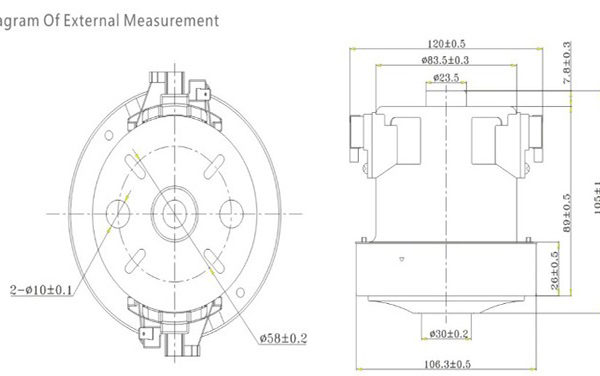

Size Drawing:



TOP
