Description
Specifications:
| Item | S20 |
| Certificate | CE, CCC |
| Rated Voltage(V) | 100-127/220-240 |
| Rated Frequency(Hz) | 50/60 |
| Rated Output Power(W) | 400 |
| Rotation | CW |
| Max Vacuum Degree(Kpa) | 14 |
| Max Air Flow(M3/min) | 1.6 |
| Max Suction Power (W) | 110 |
| Max Suction Efficiency(%) | 30 |
| Motor Speed(Rpm) | 34000 |
| Spark Grade | ≤2 |
| Vibration(mm/s) | ≤20 |
| Noise(dB) | ≤92 |
| Insulation Level | F |
| Life | ≥300h |
| Size(mm) | Top 66, bottom 85, height 96 |

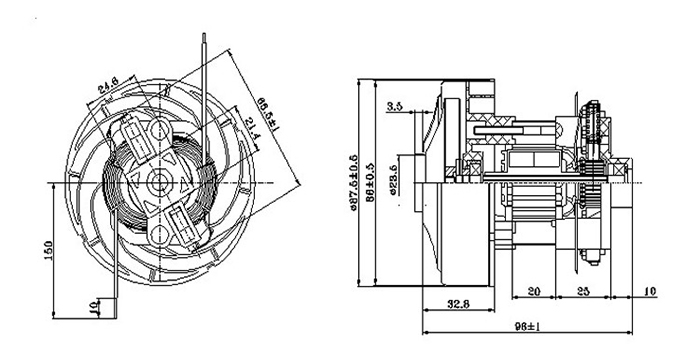

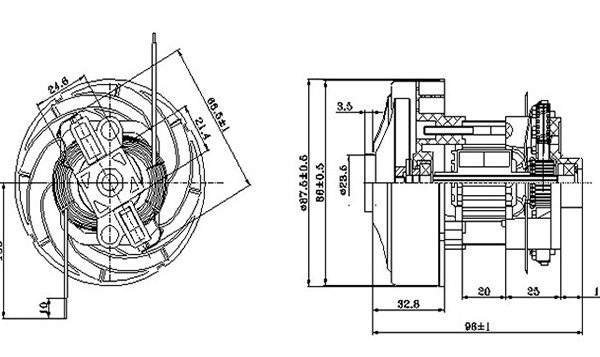

Size Drawing:
